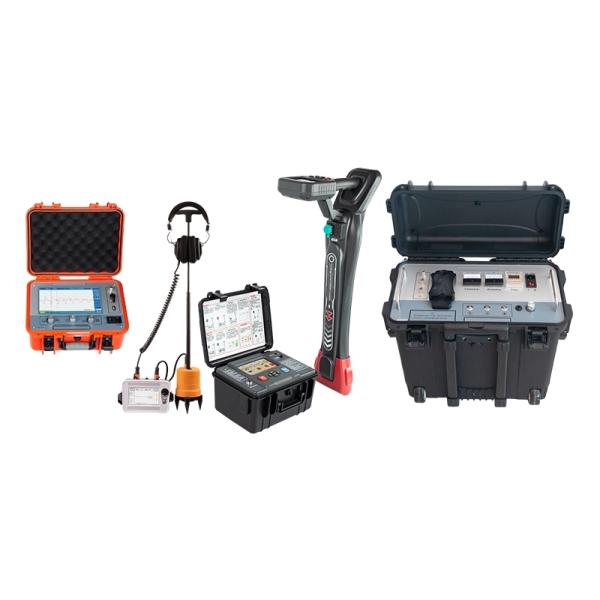

Portable cable fault location system

502A2+503C+507C+535-2L

System function

1.Use DC or high-voltage pulse to make the cable fault point flash over and discharge

2.Use the traveling wave reflection principle to make a rough measurement of all types of cable main insulation faults

3.Use the acoustic-magnetic synchronization method to make a precise measurement of all types of cable main insulation fault

I,High voltage surge generator XHHV535-2L

Output mode	EMP(impulse), DC(withstand voltage)
Output voltage	0-32kV
Built-in capacitor	2μF
Discharge energy	Max. 1024J
Impact power	250W peak
Impulse rate	Automatic impact for about 6 seconds
Surge voltage levels switch	Manual
Voltage adjustment type	Continuous
Indication	High-voltage side voltage metering, indication of output voltage and current in real time
Operating modes switch	Manual
Minimum Output current in DC mode	7.5mA at 32kV
Safe protection	With zero start protection function, safe and reliable
Discharge	Unique high-voltage measurement design, in the stop state, it will automatically discharge the internal capacitance of the device
Working power	AC 220V±15% ,50Hz±1Hz(60Hz)
DC withstand voltage testing	Output voltage adjustable and indication range 0-32kV, output current indication range 0-20A
Safety	Over-voltage, Over-current, Overheating protection. Automatic discharge after operation
Protection rating	Not lower than IP54
Total weight	Not more than 30kg

II,TDR cable fault locator XHGG502A2

Fixed-point mode	Standard mode, enhanced mode, noise reduction mode, custom mode (ms, waveform)
Fixed point method	Intelligent time difference method, electromagnetic inspection method, acoustic measurement method
Positioning accuracy	Fixed point: 0.1m, Path: 0.1m
Display	TFT ultra-bright 5-inch, 800×480 true color
language	Graphical language is more intuitive
Gain	120dB, fully automatic adjustment, also can be adjusted manually
Frequency range	100~1600Hz
Dynamic Range	0~112dB(16 gears)
Synchronous trigger	Acoustic fully automatic synchronous trigger; magnetic field fully automatic synchronous trigger
Detection range	0.00~99.99ms,75mV~75V
Probe	Automatic mute, fully digital metal intelligent probe
Headphone	600Ω military-grade strong noise reduction and anti-interference technology
Working power	4*18650 Standard lithium battery
Working hours	More than 8 hours
Ambient temperature	-25~65ºC; relative humidity: ≤90%
Weight	Host 0.6kg; Sensor 1.4kg
Waterproof grade	IP65

IV,Cable path comprehensive tester XHGX507C

Receiver
Function	Pipeline detection (cable position tracking, direction display, depth measurement, current measurement), cable identification, A-frame fault finding (optional function)
Power	8.4V large capacity rechargeable lithium battery
Input method	Built-in receiving coil, flexible caliper, A-frame (optional function)
